Why Voltage Drop Matters in Industrial Power Cable Selection

Why Voltage Loss Matters at the Machine

A power cable does not simply deliver current from the switchboard to the machine. It resists that current. The resistance of the conductor, combined with its length and the load it carries, causes a portion of the electrical energy to be lost as heat before it reaches the load. In industrial settings, that loss shows up in several ways. Motors run hotter. Variable frequency drives trip on low voltage. Sensitive electronics see unstable inputs. Over time, the heat degrades insulation and shortens the useful life of the cable itself.

Engineers and buyers often focus on the conductor size first. A 90 mm² cable looks like a lot of copper. But if the run is long and the load is high, that conductor may still produce a voltage drop that exceeds the equipment tolerance. The real question is not just what size conductor to buy, but how much voltage must arrive at the terminal to keep the machine operating within its design envelope.

What Is Voltage Drop in a Power Circuit

Voltage drop is the difference between the voltage at the supply point and the voltage at the load. In a single-phase circuit, the drop is determined by the resistance of the cable, the current flowing, and the length of the path. In a three-phase system, the calculation changes because the return path and the phase relationship alter the drop magnitude.

The drop is usually expressed in volts or as a percentage of the supply voltage. A 400 V supply with a 4 V drop at the load still delivers 396 V. For most induction motors, that is acceptable. For a precision process controller, it may be too much. The threshold is set by the equipment manufacturer, not by the cable catalog.

How Loss Affects Equipment Performance

When a motor receives less voltage than designed, it draws more current to maintain torque. That extra current increases heating in the windings. The motor may still turn, but it will run hotter than its nameplate rating allows. Over years of operation, the insulation degrades faster. The bearings see less efficient operation because the drive system works harder.

Variable frequency drives have their own limits. If the input voltage falls too low during acceleration, the drive may report an under-voltage fault. The plant loses production time while technicians chase a fault that started with an undersized cable run.

Heating inside the cable is also a concern. Every watt lost as heat adds to the ambient temperature around the conductor. If the cable is in a crowded trunking or a hot plant area, that heat compounds. The insulation class may not be rated for the combined temperature, leading to premature failure.

How Voltage Drop Calculation Guides Cable Selection

The calculation itself is straightforward. You estimate the total length of the run. You determine the continuous current the circuit will carry, including start-up surges where relevant. You select a candidate conductor size. You apply the standard formula for the phase voltage drop. If the result exceeds the allowed percentage, you move to the next larger conductor size or change the insulation type to reduce resistance.

The allowed percentage depends on the application. General power distribution often allows a few percent. Precision loads may need tighter tolerance. The calculation is not a one-time exercise. It must be revisited when the plant layout changes or when a new load is added to an existing feeder.

A Worked Example in Plain Words

Consider a plant that powers a large pump from a main switchboard. The run is 150 meters long. The pump draws a continuous current that, when calculated with the power factor included, requires a conductor sized to keep the drop below the manufacturer limit.

A standard calculation would use the conductor resistance in ohms per meter, the total length, and the current. The result is a drop in volts. If that drop is too high, the engineer does not simply buy a bigger cable. They check the ambient temperature, the number of cables in the same tray, and the start-up current. They may choose a larger conductor, or they may reroute the cable to reduce length, or they may install a voltage booster at the far end.

The decision is a trade-off. A larger conductor costs more and is harder to bend. A shorter run may require new tray. A booster adds complexity and maintenance. The voltage drop calculation helps the buyer see these options clearly before committing to a purchase.

Factors That Change the Calculation

Distance is the most obvious factor. Doubling the run length doubles the drop. Current is the second. A motor that draws 40 A will produce a larger drop than one that draws 20 A on the same cable.

Ambient temperature matters. Conductors in a hot plant area or in direct sunlight have higher resistance than the same conductors in a cool room. The insulation rating also changes the allowable current. A cable rated for a higher temperature can carry more current, but the voltage drop is still driven by the conductor resistance, not the insulation.

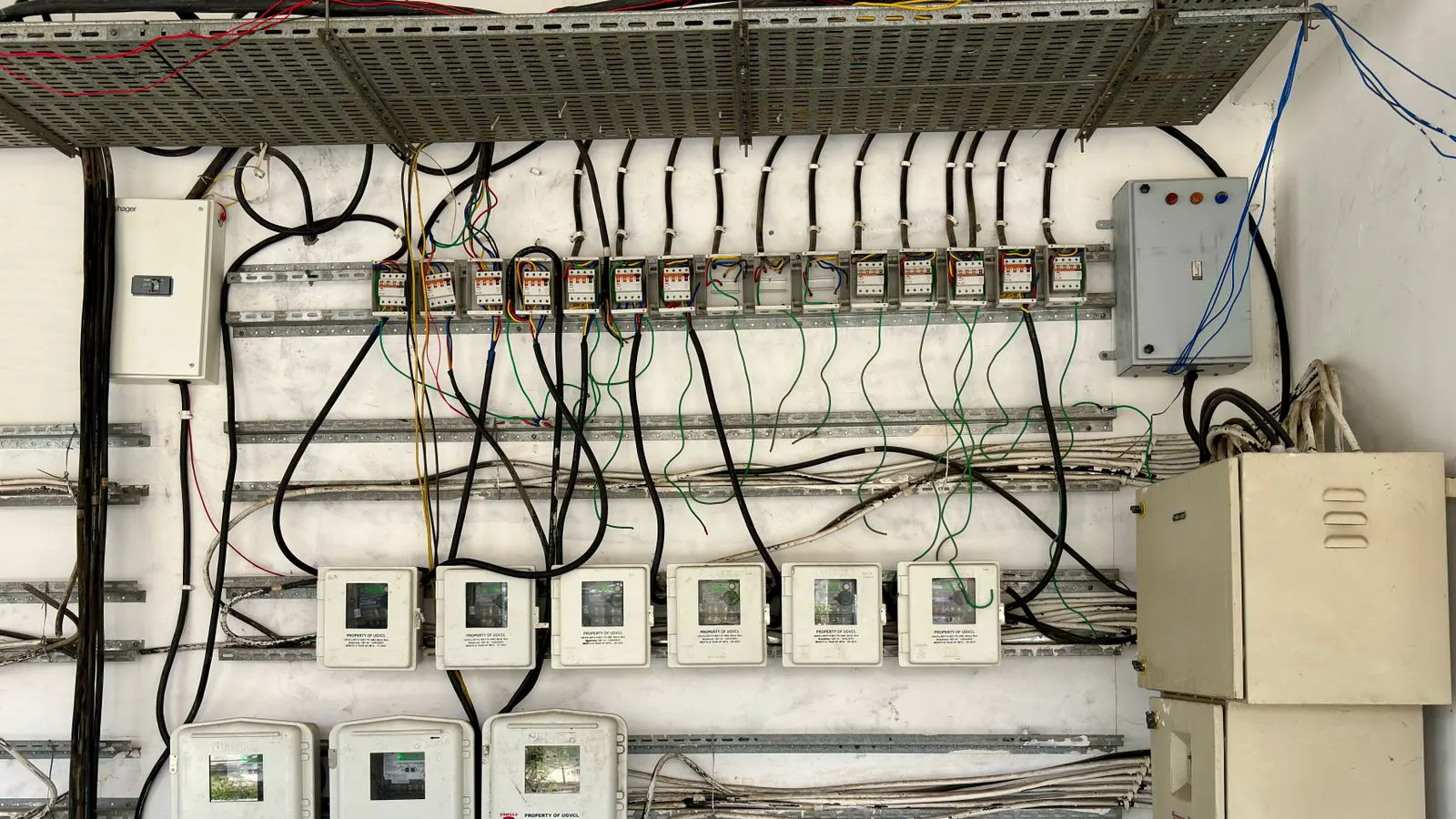

The number of cables in the same enclosure changes the heating. If six identical cables share a tray, each one heats the others. The allowable current for each cable is reduced. The voltage drop calculation must account for this derating.

Choosing the Right Industrial Power Cable

When selecting an industrial power cable, the buyer should look at more than the conductor size. The insulation material determines the temperature rating and the flexibility of the bend. The armor type affects mechanical protection and the installation method. The outer sheath must suit the environment, whether it is a wet area, a chemical plant, or an outdoor run.

The conductor material is usually copper in most industrial applications, but aluminum is used in longer runs where the cost savings justify the larger cross-section and the lower conductivity. Aluminum cables have higher resistance per unit length than copper of the same size. The voltage drop calculation must use the correct material factor.

The insulation class should match the operating temperature. A cable rated for 70 degrees Celsius will not perform as well in a 90 degree environment as one rated for 90 degrees. The higher rating allows a larger continuous current, which can reduce the required conductor size, but the voltage drop remains the governing factor for performance.

Common Mistakes in Cable Sizing

The most common mistake is sizing the cable based on the maximum current only, without considering the length. A short run may be fine with a small conductor, but a long run on that same conductor will drop too much voltage.

Another mistake is ignoring the start-up current. A large motor may draw several times its running current for a few seconds. The voltage drop during start-up can be high enough to trip other equipment on the same feeder. The calculation should include the worst-case scenario, not just the steady-state load.

A third mistake is assuming that a larger cable always solves the problem. If the voltage drop is caused by a long run, a larger conductor helps, but it may not be enough. The engineer may need to change the supply point or add a booster. Buying a bigger cable without understanding the root cause wastes money.

Checking the Calculation Before Installation

Before a cable is installed, the calculation should be verified with the final as-built layout. The planned length may differ from the actual length after the tray is routed. The number of cables in the tray may change. The ambient temperature in the actual location may be higher than expected.

A simple check is to measure the voltage at the load after installation under load. If the measured drop is higher than calculated, the installation may have introduced extra resistance, or the load may be higher than assumed. Correcting this early avoids long-term issues.

The voltage drop calculation is not just a theoretical exercise. It is a practical tool that protects equipment, improves efficiency, and prevents costly retrofits. By understanding how losses affect performance and by applying the calculation at the right stage of the project, buyers and engineers can select the right industrial power cable the first time.
